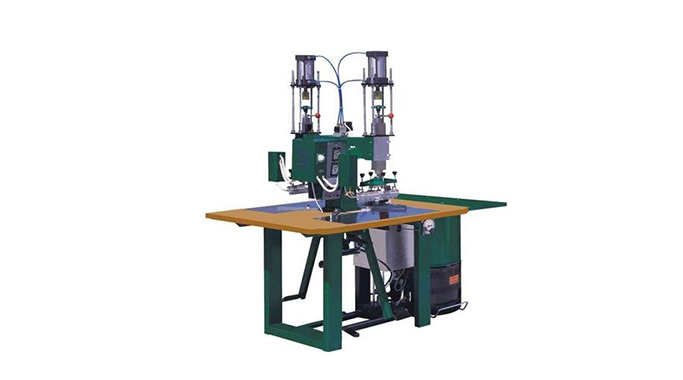

雙頭氣壓熔接機
"T" type of trapezoid slide block design, safety and efficiency of the operation is simple.
1、穩定的緩沖結構,定位準確。
The stability of the cushion structure, accurate positioning.
2、配置高敏感的火花保護器,打火時模具受損程度降至最低,減少產品的報廢率。
Equipped with high sensitive spark protector. To reduce mold damage when it sparking, greatly reduce scrap rate.
3、配置有過流保護、風冷風力保護裝置。
Equipped with over-current protection, air cooling wind protection device.
4、可選裝加熱燈輔助裝置。
Options to add heat lamp auxiliary device.
6、加壓方式為腳踏式(可選裝氣動)。
Pressure mode for pedal-powered (pneumatic options).
適用于吹氣玩具、拖鞋、手提包、錢包、皮帶、包裝帶、文具、商標、吸塑包裝等產品加工的行業。
Applicable to blowing toys, slippers, handbags, wallets, belts, packaging tape, stationery, trademark, blister packaging and other products processing industry.
型號 | 高週出力 | 電源電壓 | 最大入力 | 最大壓力 | 下電極板 | 加壓方式 |
HYX-JQ5 | 5KW | AC380V | 6KVA | 400kg | 450*800mm | 腳踏/氣動 |
HYX-JQ4 | 4KW | AC380V | 5KVA | 400kg | 450*800mm | 腳踏/氣動 |
HYX-J5 | 5KW | AC380V | 6KVA | 90kg | 450*800mm | 腳踏 |
HYX-J4 | 4KW | AC380V | 5KVA | 90kg | 450*800mm | 腳踏 |
